THIS IS THE RIGHT BIKE FOR
Fans of the classic Sportster™ silhouette paired with a Revolution™ Max engine and advanced features
Riders looking for a quick and nimble motorcycle with razor-sharp handling
Enthusiasts who appreciate the heritage and feel of a Harley-Davidson motorcycle in an understated package

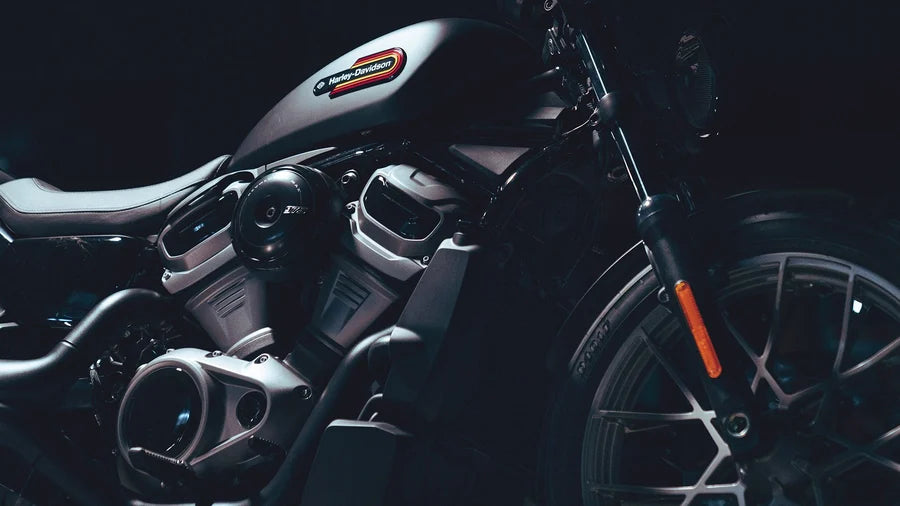

Liquid Cooled Revolution Max 975T
Performance when you need it, the Revolution Max 975T engine is a liquid-cooled V-Twin tuned to make tremendous torque at low RPM, delivering strong acceleration from the start with robust power through the mid-range.
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Revolution™ Max 975T
97 mm
66 mm
975 cc
12.0:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-1; catalyst in header
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
2,265 mm
120 mm
30
137 mm
1,545 mm
100/90-19 57H
150/80B16 77H
Dunlop™ Harley-Davidson Series Bias Blackwall
11.7 l
4.5 l
216 kg
225 kg
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy
J1349
95 Nm
5,000
90 HP / 67 kW @ 7500 rpm
32
32
EU 134/2014
5.1 l/100 km
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Gear, 49/89 ratio
12.21
9.022
6.994
5.641
4.731
4.131
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Breaks, Type
Brakes, Caliper Type
41mm SHOWA™ Dual Bending Valve conventional forks. Aluminium fork triple clamps.
Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.
Aluminium cast, silver
Aluminium cast, silver
Front: single rotor, floating, hub - mounted; Rear: solid uniform expansion rotor
Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
Lights (as per country regulation), Indicator Lamps
Gauges
All LED headlamp, low and high beam with signature position lighting; All LED rear lighting, LED bullet turn signals
4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Ready to ride the HARLEY-DAVIDSON® Nightster™ Special
Enquire about this motorcycle
