/ Cruiser

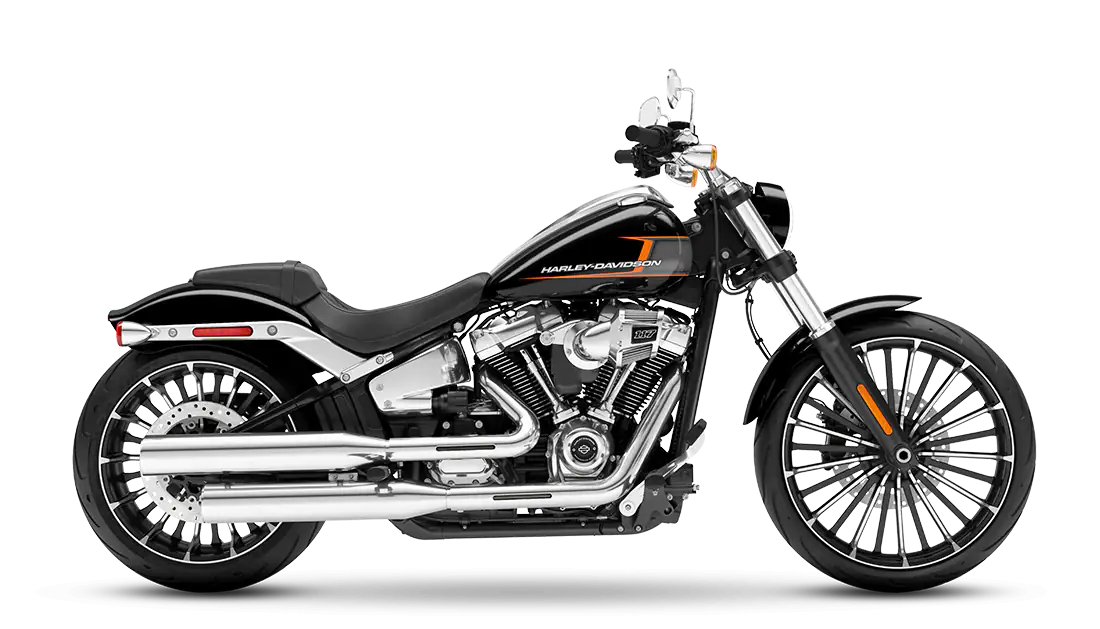

2024 Breakout™ 117

2024 Breakout™ 117
Book a test ride

NEED FINANCE?

Enquire now

THIS IS THE RIGHT BIKE FOR
Riders looking for head-turning style and performance
Blasting through the city and block-beating passing power
Riders seeking Milwaukee-Eight™ 114 V-Twin and sharp handling

MILWAUKEE-EIGHT™ 114 ENGINE

Loads of torque for blasting off from stoplights, hitting entrance ramps and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Detailed Specifications

  • Engine
  • Dimensions
  • Performance
  • Drivetrain
  • Chassis
  • Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 117
103.5 mm
114 mm
1,923 cc
10.2:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-2 staggered; catalyst in muffler
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
2,370 mm
115 mm
34
145 mm
1,695 mm
130/60B21,63H,BW
240/40R18,79V,BW
Michelin™ Scorcher™ "11" front and rear
13.2 l
4.7 l
294 kg
305 kg
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
167 Nm
3,500
26.8
26.8
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Dual-bending valve 49 mm telescopic with aluminium fork triple clamps; dual rate spring
Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
Gloss black, Gasser II cast aluminium
Gloss black, Gasser II cast aluminium
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
Gauges
All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets Front Signal Lights; Bullet-style, multi-function LED stop/tail/turn signals Rear Turn Signals
2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
