THIS IS THE RIGHT BIKE FOR
Hot rod riders who like bright chrome and a steamroller stance
Commanding the road with fat tires and a squared-up headlamp
Milwaukee-Eight™ 114 V-Twin engine and Lakester disc wheels
MILWAUKEE-EIGHT™ BIG TWIN ENGINE
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 114
102 mm
114.3 mm
1,868 cc
120.5:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-2 staggered; catalyst in muffler
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
2,370 mm
115 mm
30
104 mm
1,665 mm
160/60R18,70V,BW
240/40R18,79V,BW
Michelin™ Scorcher™ "11" front and rear
18.9 l
4.7 l
304 kg
317 kg
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
155 Nm
3,250
25.6
25.6
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Dual-bending valve 49 mm telescopic with aluminium fork triple clamps; dual rate spring; "beer can" covers
Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
Machined, Lakester cast Aluminium
Machined, Lakester cast Aluminium
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
Gauges
All LED headlamp, low and high beam with signature position lighting headlamp; All LED Tail/Stop lamp with signature tail lighting; LED Bullet front and Rear Turn Signals
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication

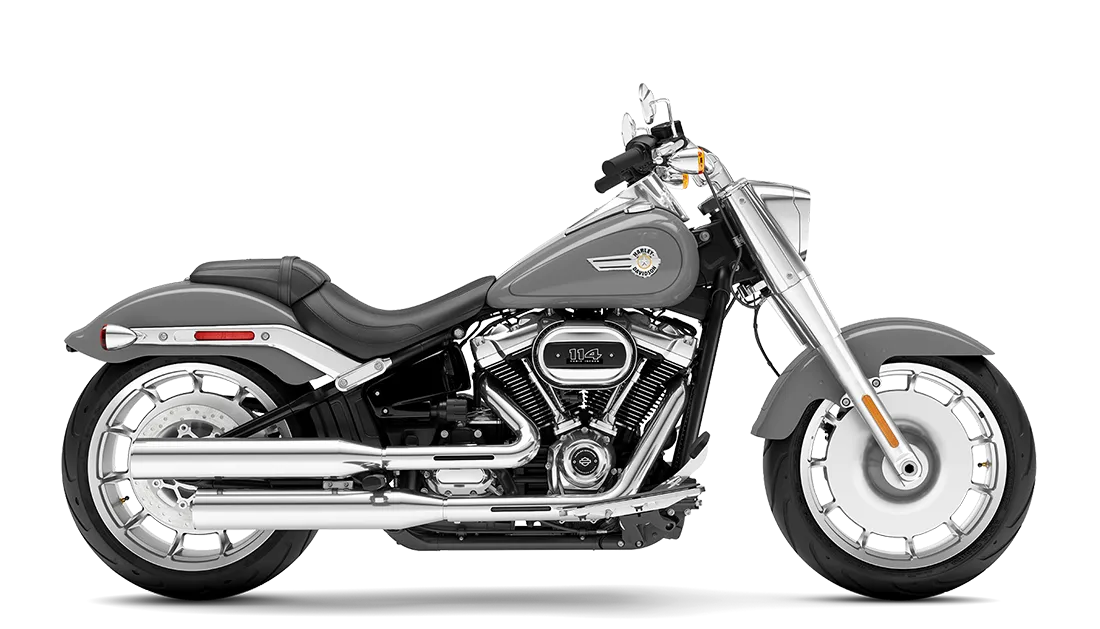

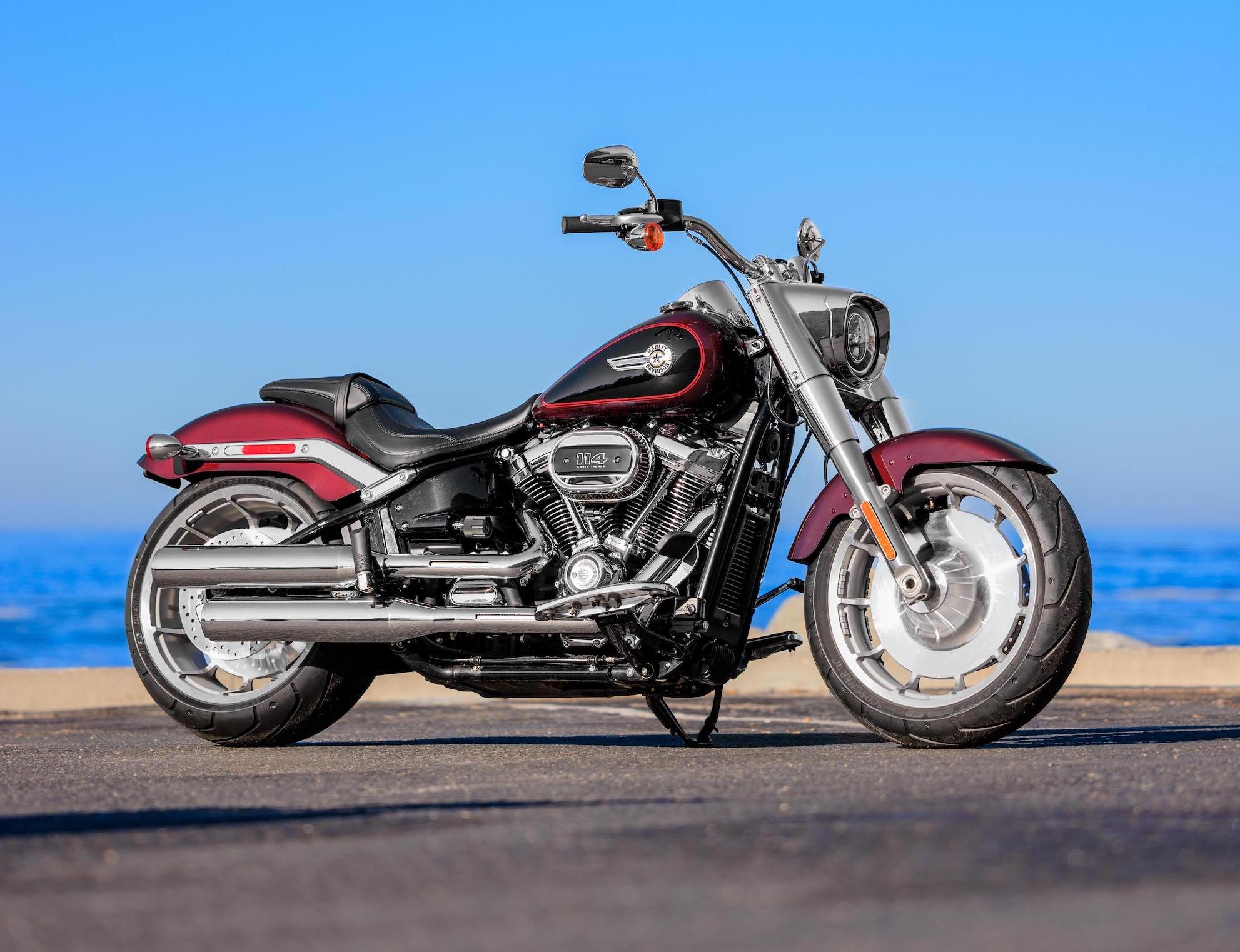

Ready to ride the HARLEY-DAVIDSON® Fat Boy™
Enquire about this motorcycle
