THIS IS THE RIGHT BIKE FOR
Riders ready to chase excitement across state lines
Highway riding with full fenders and detachable windscreen
Milwaukee-Eight™ 114 V-Twin engine and steel laced wheels

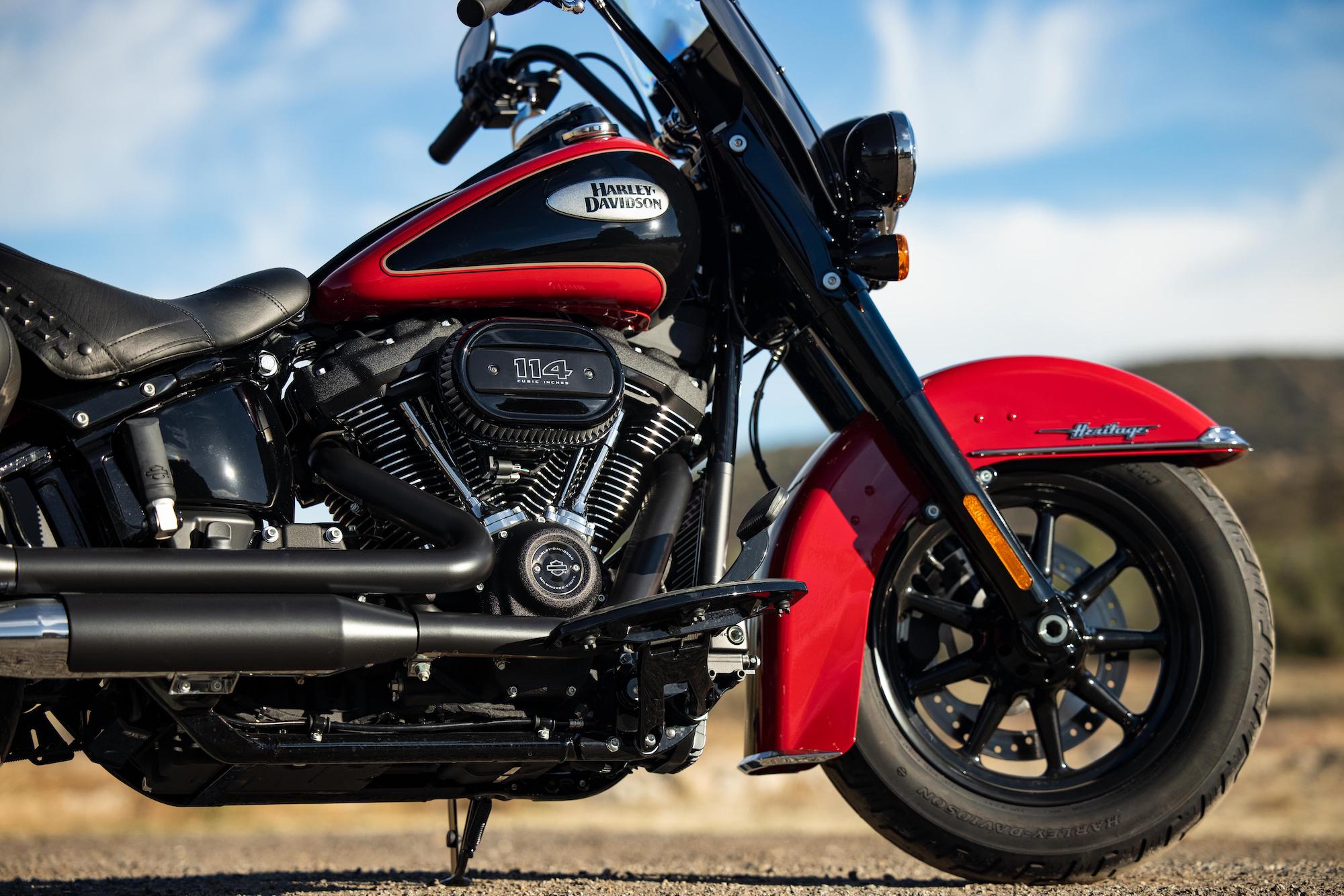

MILWAUKEE-EIGHT™ BIG TWIN ENGINE
A powerful, cool-running engine with crisp throttle response and a pure, soul-satisfying rumble.
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 114
102 mm
114 mm
1,868 cc
10.5:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-2 shorty dual; catalyst in muffler
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
Luggage Capacity-Volume
2,415 mm
120 mm
30
140 mm
1,630 mm
130/90B16,73H,BW
150/80B16,77H,BW
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
18.9 l
4.7 l
316 kg
330 kg
0.043m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
155Nm
3,250
27.3
28.5
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Optional Style Type
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Dual-bending valve 49 mm telescopic with aluminium fork triple clamps; dual rate spring; "beer can" covers
Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
Black or chrome, steel laced (based on trim)
Gloss black, 9-spoke cast aluminium
Gloss black, 9-spoke cast aluminium
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
Gauges
All LED, low beam, high beam and signature position lamp; Incandescent Zeppelin tail lamp; Incandescent bullets Front Signal Lights; Incandescent bullet light bar rear turn signal
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
