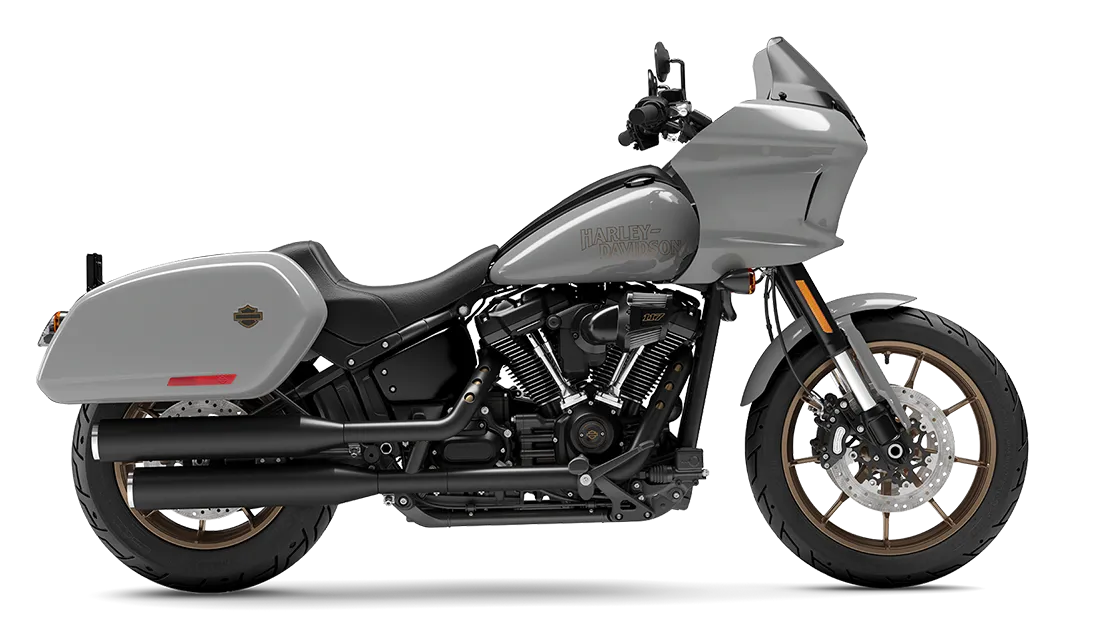

2024 Low Rider™ ST

2024 Low Rider™ ST
Book a test ride

NEED FINANCE?

Enquire now

THIS IS THE RIGHT BIKE FOR
Riders seeking West Coast style and unrelenting power
Outrageous performance with a matching attitude
FXRT devotees who want the latest riding enhancements

MILWAUKEE-EIGHT™ 117 V-TWIN

The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 168 Nm of torque at 3500 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.

Detailed Specifications

  • Engine
  • Dimensions
  • Performance
  • Drivetrain
  • Chassis
  • Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 117
103.5 mm
114.3 mm
1,923cc
10.2:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-2 offset shotgun; catalyst in muffler
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
Luggage Capacity - Volume
2,365 mm
150 mm
28
145 mm
1,615 mm
110/90B19,62H,BW
180/70B16,77H,BW
Michelin™ Scorcher™ "31" front and rear
18.9 l
4.7 l
315 kg
327 kg
0.05m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy
EC134/2014
168 Nm
3,500
105 HP / 78 kW @ 5020 rpm
30
30
EU 134/2014
5.5 l/100 km
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Single cartridge 43 mm inverted with Aluminium fork triple clamps; single rate spring
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Dark bronze, Radiate cast Aluminium wheel
Dark bronze, Radiate cast Aluminium wheel
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
Gauges
All LED, low beam, high beam and signature position lamp headlamp; LED Zeppelin Tail/Stop; Incandescent bullet turn signals
2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
