/ Grand American Touring

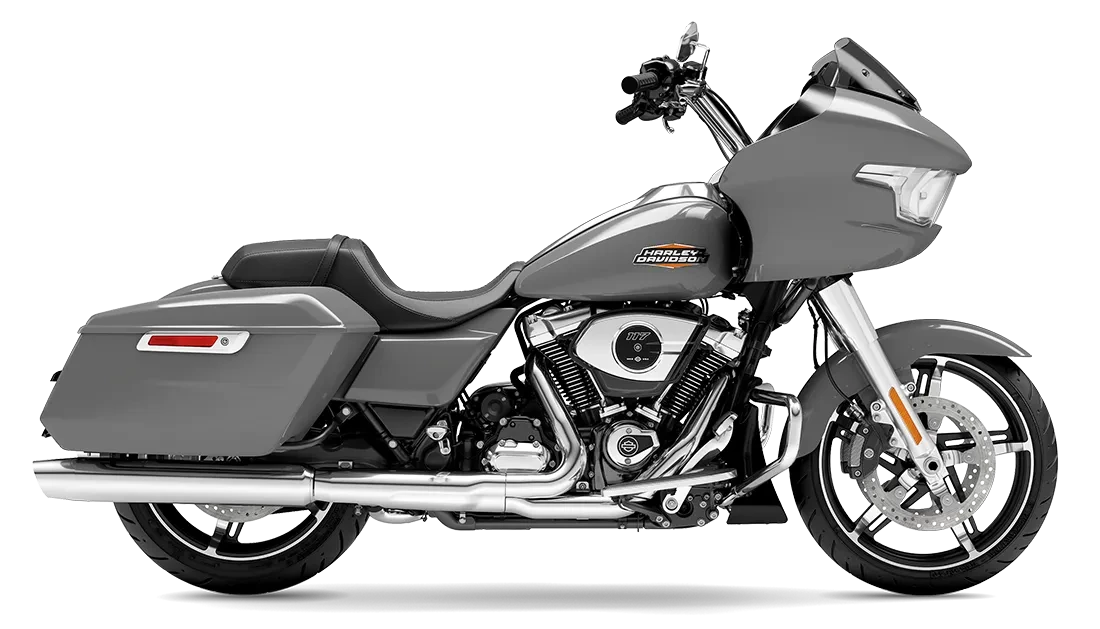

2024 Road Glide™

2024 Road Glide™
Book a test ride

NEED FINANCE?

Enquire now

THIS IS THE RIGHT BIKE FOR
Performance-hungry distance riders
Enthusiasts seeking stand-out power and comfort
Classic touring design with premium H-D features

MILWAUKEE-EIGHT™ 117 V-TWIN

The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 168 Nm of torque at 3500 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.

Detailed Specifications

  • Engine
  • Dimensions
  • Performance
  • Drivetrain
  • Chassis
  • Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 117
103.5 mm
114.3 mm
1,923 cc
10.2:1
Electronic Sequential Port Fuel Injection (ESPFI)
Dual, with crossover
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
Luggage Capacity-Volume
2,405 mm
140 mm
26
170 mm
1,625 mm
130/60B19 61H
BW 180/55B18 80H
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
22.7 l
4.9 l
366 kg
382 kg
0.064m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy
EC134/2014
168 Nm
3,500
103 HP / 77 kW @ 5450 rpm
32
31
EU 134/2014
5.7 l/100 km
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.593
6.65
4.938
4
3.407
2.875
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
49 mm Dual Bending Valve
Premium standard height hand-adjustable rear suspension
Bronze Prodigy
Bronze Prodigy
32 mm, 4-piston fixed front and rear
Lights (as per country regulation), Indicator Lamps
Gauges
Headlight LED 34 Watt, 915 lumen low beam, 37 watt, 915 lumen high beam. 8W/28W Tail/Stop, Front Signal Lights and Rear Turn Signals
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

Ready to ride the HARLEY-DAVIDSON® Road Glide™ ST
