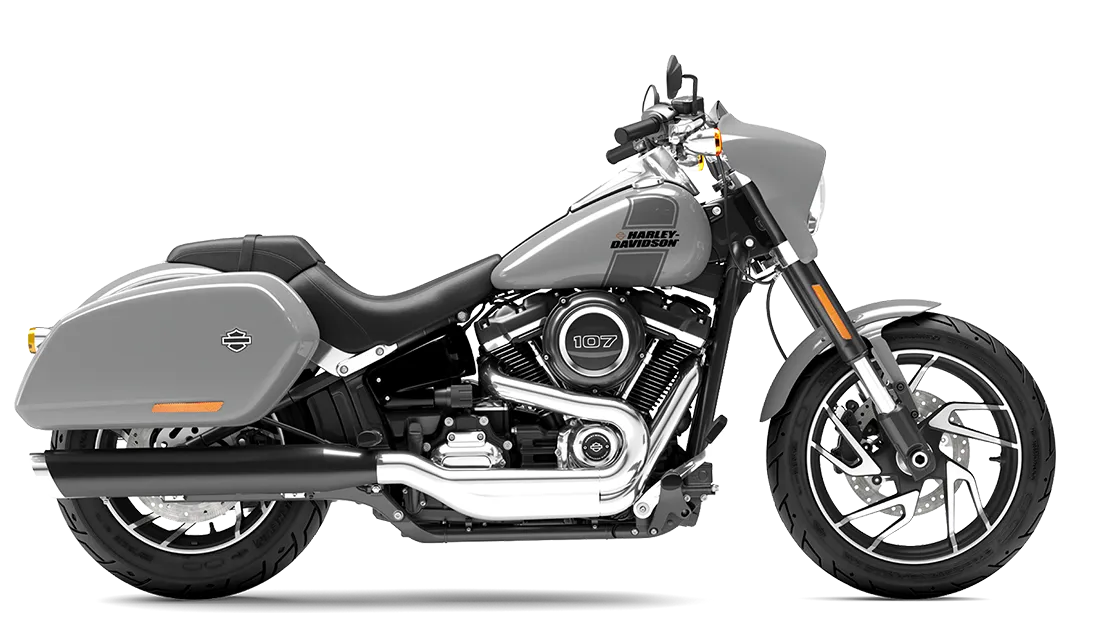

2024 Sport Glide™

2024 Sport Glide™
Book a test ride

NEED FINANCE?

Enquire now

THIS IS THE RIGHT BIKE FOR
Riders seeking equal parts performance and touring
Being ready in the moment with removable touring accessories
Milwaukee-Eight™ 107 V-Twin engine and Mantis wheels

MILWAUKEE-EIGHT™ 107 ENGINE

Enough power and torque to go almost anywhere quickly. Rigid mounting and internal counterbalancing allows for a smooth ride without giving up the Harley feel that riders know and love.Next

Detailed Specifications

  • Engine
  • Dimensions
  • Performance
  • Drivetrain
  • Chassis
  • Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 107
100 mm
111 mm
1,746 cc
10.0:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-1; catalyst in muffler
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
Luggage Capacity-Volume
2,325 mm
120 mm
30
150 mm
1,625 mm
130/70B18 63H BW
180/70B16 77H BW
Michelin™ Scorcher™ "31" front and rear
18.9 l
4.7 l
304 kg
0.05 m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
139 Nm
3,500
28
29
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Single cartridge 43 mm inverted with aluminium fork triple clamps; triple rate spring.
Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic pre-load adjustment
Black, machine highlighted, Mantis cast Aluminium
Black, machine highlighted, Mantis cast Aluminium
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
Gauges
All LED, low beam, high beam and signature position lamp headlamp; Integrated LED Tail/Stop; Incandescent bullets Front Signal Lights; Integrated LED Rear Turn Signals
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
