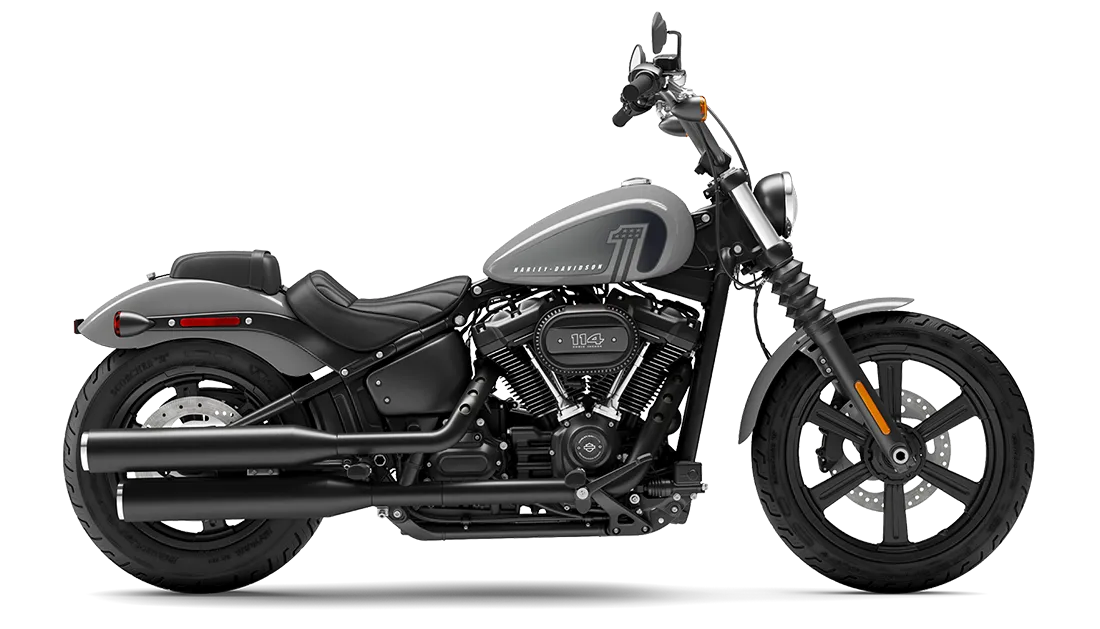

2024 Street Bob™ 114

2024 Street Bob™ 114
Book a test ride

NEED FINANCE?

Enquire now

THIS IS THE RIGHT BIKE FOR
A perfect performance base for customization
The rider who wants a quick and easy get away ride
2-up seating, black steel laced wheels, dark finishes

MILWAUKEE-EIGHT™ 114 ENGINE

Loads of torque for blasting off from stoplights, hitting entrance ramps and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Detailed Specifications

  • Engine
  • Dimensions
  • Performance
  • Drivetrain
  • Chassis
  • Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 114
102 mm
114.3 mm
1,868 cc
10.5:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-2 offset shotgun; catalyst in muffler
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
2,320 mm
125 mm
30
157 mm
1,630 mm
100/90B19,57H,BW
150/80B16,77H,BW
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
13.2 l
4.7 l
286 kg
297 kg
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
155 Nm
3,250
28.5
28.5
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Dual-bending valve 49 mm telescopic with aluminium fork triple clamps; dual rate spring; gaiter covers
Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
Black, Annihilator cast aluminium
Black, Annihilator cast aluminium
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
Gauges
All LED, Low Beam, High Beam & Signature Position Lamp headlamp; Bullet-style, multi-function LED stop/tail/turn signals Tail/Stop; Incandescent Bullets Front Signal Lights; Bullet-style, multi-function LED stop/tail/turn signals Rear Turn Signals
2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

Ready to ride the HARLEY-DAVIDSON® Street Bob™
