THIS IS THE RIGHT BIKE FOR
Milwaukee-Eight™ 114 V-Twin engine and Prodigy™ wheels
Never before offered two-tone paint schemes
Bright white Daymaker™ LED headlamp
MILWAUKEE-EIGHT™ 114 ENGINE
The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 114
103.5 mm
114.3 mm
1,923 cc
10.3:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-1-2 dual exhaust with tapered mufflers
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
Luggage Capacity-Volume
2,425 mm
125 mm
26
173 mm
1,625 mm
130/60B19 61H
180/55B18 80H
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
22.7 l
4.9 l
359 kg
375 kg
0.071m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
158 Nm
3,250
32
31
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.593
6.65
4.938
4
3.407
2.875
Front Fork
Rear Shocks
Wheels Optional Style Type
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
49mm Dual Bending Valve
Premium Low Hand-Adjustable Rear Suspension
Gloss Black Prodigy with Contrast Cut Highlight
Gloss Black Prodigy
Gloss Black Prodigy
32 mm, 4-piston fixed front and rear
Lights (as per country regulation), Indicator Lamps
Gauges
LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam headlamp; 8W/28W Tail/Stop, Front Signal Lights and Rear Turn Signals
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

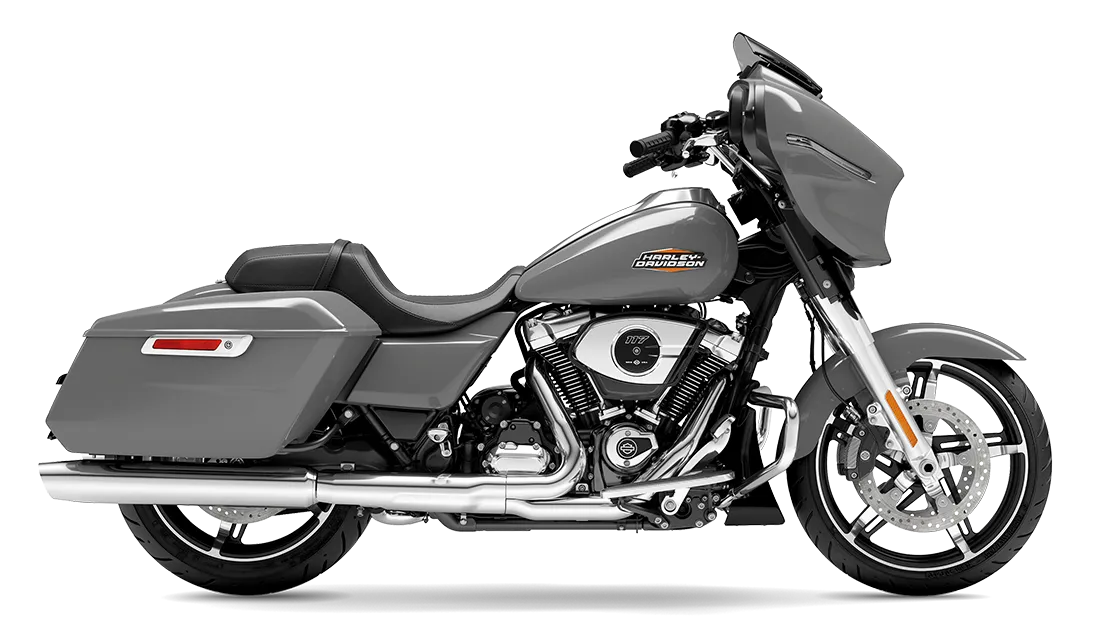

Ready to ride the HARLEY-DAVIDSON® Street Glide™ Special
