Riders seeking the fully-loaded touring experience
Bold styling and comfort with a vented batwing fairing
Twin-Cooled™ Milwaukee-Eight™ 114 engine and heated grips
MILWAUKEE-EIGHT™ 114 ENGINE
The most displacement in standard H-D™ Touring models. You get 114 cubic inches of passing and horizon-chasing power.
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Twin-Cooled™ Milwaukee-Eight™ 114
102 mm
114 mm
1,868 cc
10.5:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-1-2 dual exhaust with tapered mufflers
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
Luggage Capacity-Volume
2,600 mm
135 mm
26
170 mm
1,625 mm
BW 130/70B18 63H
BW 180/55B18 80H
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
22.7 l
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
164 Nm
3,000
32
32
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.593
6.65
4.938
4
3.407
2.875
Front Fork
Rear Shocks
Wheels, Optional Style Type
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
49mm Dual Bending Valve
Premium standard height hand-adjustable rear suspension
Gloss Black Slicer II
Slicer II cast Aluminium with clear coat
Slicer II cast Aluminium with clear coat
32 mm, 4-piston fixed front and rear
Lights (as per country regulation), Indicator Lamps
Gauges
LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights headlamp, 8W/28W Tail/Stop and Front Signal Lights; LED Rear Turn Signals
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

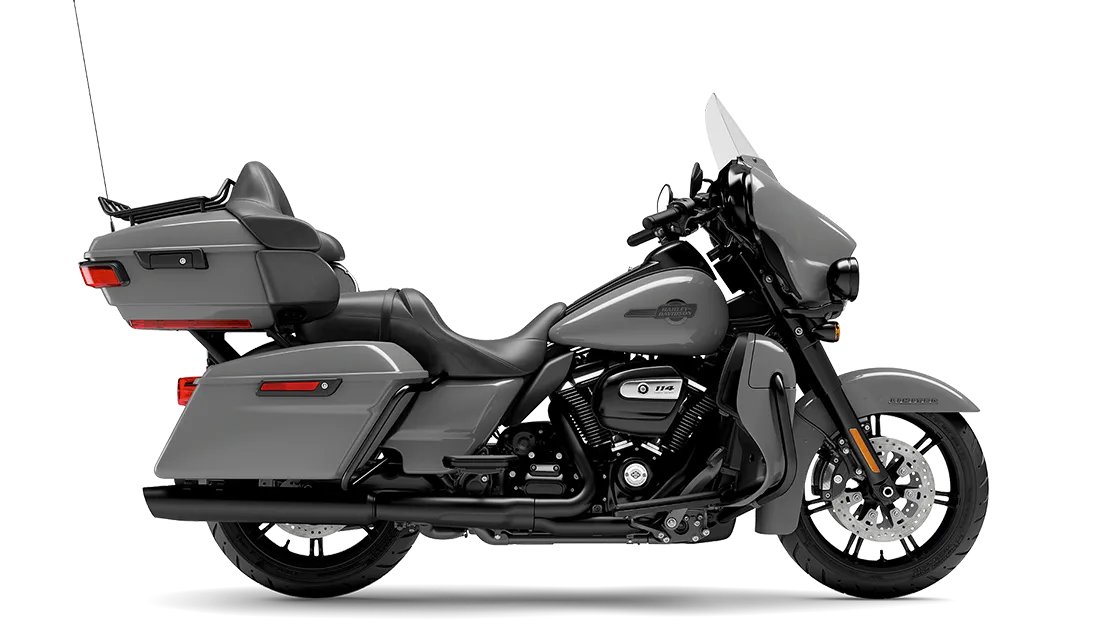

Ready to ride the HARLEY-DAVIDSON® Ultra Limited
